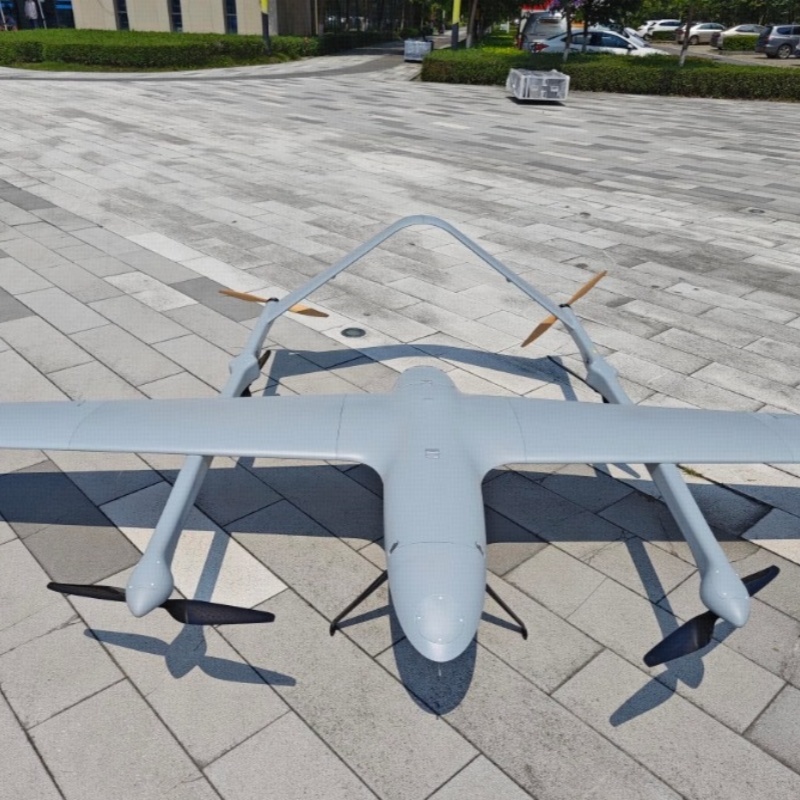

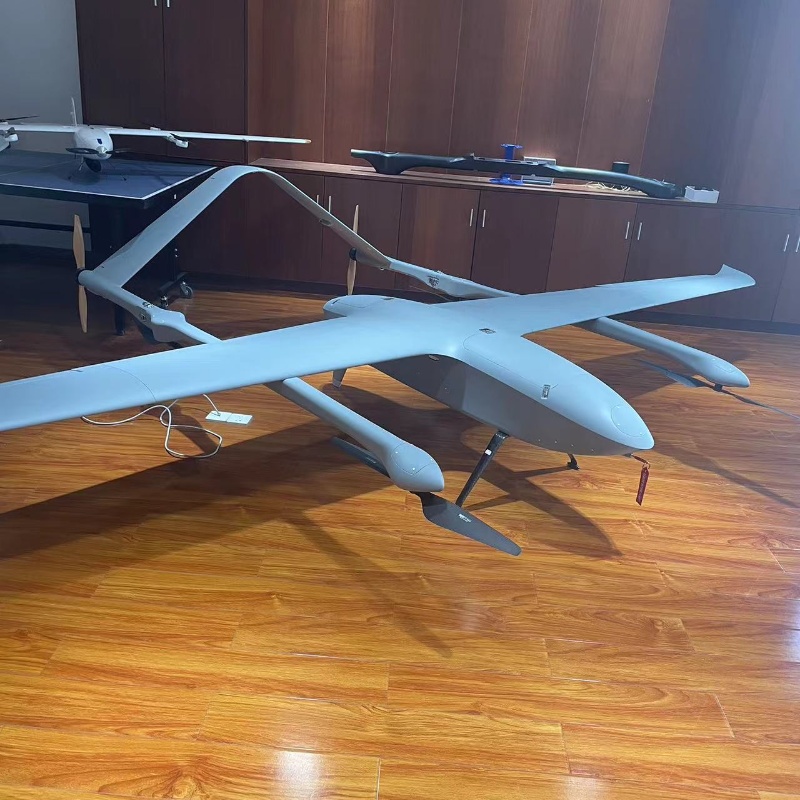

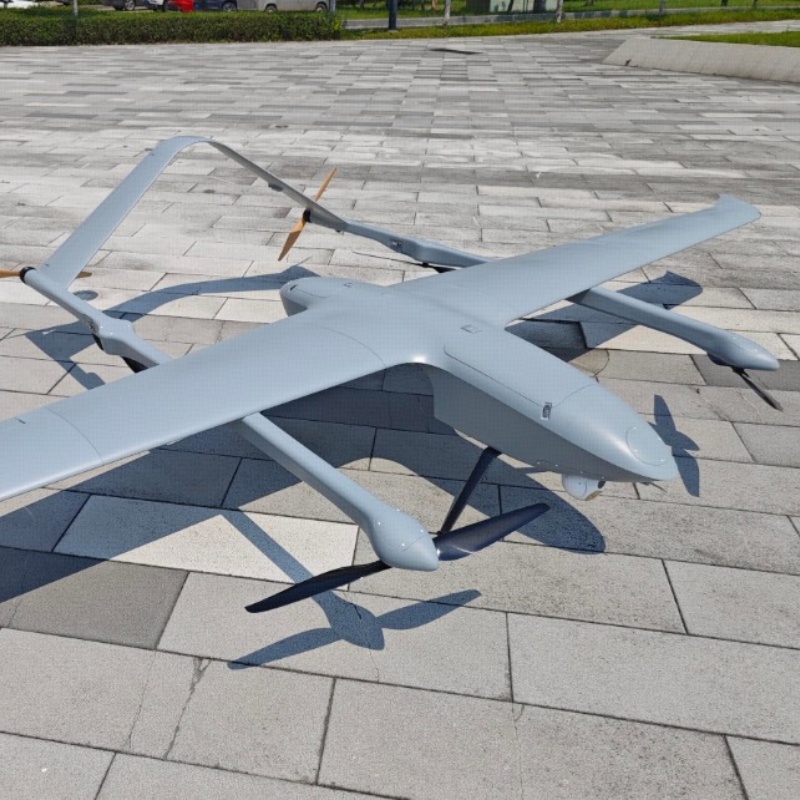

JH-48 15kg hybrid payload VTOL fixed wing drone
Five Advantages Of Products
- 15KG heavy payload
- Cruise Speed:80km/h
- Max. Flight Speed:120km/h
- Aircraft dimensions: 4800*2580*850MM
- Max. Wind Resistance:Level 7
Product Details
JH-48 is a medium and large unmanned bomber, with the characteristics of large bomb load and flighttime. With a maximum load of 15kg and a flight time of up to 180 minutes, it adopts a double-tail bracelayout, and the cruising flight uses 2 independent power systems and dual power backup.
Parameters:
Standard take-off weight:50kg
Max. Payload Weight:15kg
Cruise Speed:80km/h
Max. Flight Speed:120km/h
Control radius:100km Customizable
Max. climb speed:6m/s
Max. Descend speed:5m/s
Max. Altitude AMSL:4200m
Max. Wind Resistance:Level 7
Operating temperature:-10~60℃
Flight Time: ≥240min
Flight Distance≥300km
Aircraft dimensions: 4800*2580*850MM
Package dimensions:
190*105*78CM
190*51*104CM
Dongguan Jinhong Aviation Technology Co., Ltd.
Contact Person: Jane
Department: International sale department
Post: Manager
Telephone: +86-18664149308
Landline: +86-18665969188
Company Address: No. 13, Shixing Street, Luwu, Chashan Town, Dongguan
Factory Address: No. 13 Shixing Street Luwu Chashan Town Dongguan City Guangdong Province China
Website: www.jinhongaviation.com
